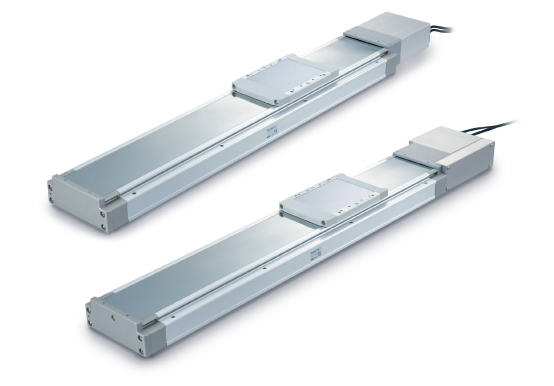

Electric Actuator High Rigidity Slider Type Series LEJ

img-LEJ
FeaturesApplication ExamplesSeries VariationsAC Servo Motor Driver

Ball Screw Drive, Belt Drive [AC Servo Motor (100/200 W)]

  • Ball Screw Drive Series LEJS / Size: 40, 63
    Max. work load: 85 kg
    Positioning repeatability: ±0.02 mm
    Max. acceleration/deceleration: 20000 mm/s2
  • Belt Drive Series LEJB / Size: 40, 63
    Max. stroke: 3000 mm
    Max. speed: 3000 mm/s
    Max. acceleration/deceleration: 20000 mm/s2
  • Compatible Drivers

Low-profile/Low center of gravity

Height dimension reduced by approx. 31% (Reduced by 28 mm)

Workpiece does not interfere with the motor
Weight reduction

High precision/High rigidity

Double axis linear guide reduces deflection

Reduction of the installation labor

Possible to mount the main body without removing the external cover, etc.

Solid state auto switch can be mounted

Switch wiring can be placed in the body
D-M9 W (2-color indication), D-M9
